The pharmaceutical industry operates under strict regulatory requirements to ensure that every medicine manufactured is safe, effective, and of consistent quality. One of the most important elements of Good Manufacturing Practices (GMP) is equipment qualification. Before any pharmaceutical equipment is used for commercial manufacturing, it must be demonstrated that it has been installed correctly, operates according to design specifications, and consistently performs under routine production conditions. This systematic process is known as IQ OQ PQ Qualification.
IQ OQ PQ Qualification is a documented process used to verify and qualify equipment, utilities, facilities, and manufacturing systems before they are used in pharmaceutical production. Regulatory agencies such as the US FDA, WHO, EMA, MHRA, and PIC/S require pharmaceutical manufacturers to perform qualification activities and maintain complete documentation as evidence of compliance.
Whether it is a reactor, granulator, fluid bed dryer, tablet compression machine, purified water system, HVAC system, or filling machine, every critical system must successfully complete IQ OQ PQ Qualification before commercial production begins.
This comprehensive guide explains every aspect of IQ OQ PQ Qualification, including its objectives, stages, documentation, regulatory requirements, best practices, and practical examples.
What Is IQ OQ PQ Qualification?
IQ OQ PQ Qualification is a structured qualification process that demonstrates a piece of equipment or a pharmaceutical system is suitable for its intended use.

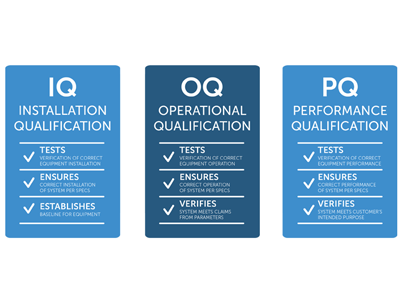

The qualification process consists of three sequential stages:
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Performance Qualification (PQ)
Each stage verifies a different aspect of equipment performance.
Installation Qualification confirms correct installation.
Operational Qualification confirms proper operation.
Performance Qualification confirms consistent performance under actual manufacturing conditions.
Together, IQ OQ PQ Qualification provides documented evidence that equipment can reliably produce pharmaceutical products meeting predetermined quality requirements.
Why Is IQ OQ PQ Qualification Important?
Every pharmaceutical product comes into direct or indirect contact with manufacturing equipment. If the equipment is improperly installed, incorrectly operated, or incapable of maintaining process parameters, product quality may be affected.
The implementation of IQ OQ PQ Qualification ensures that manufacturing equipment consistently performs according to its design specifications throughout its lifecycle.
Major benefits include:
- Ensures GMP compliance
- Improves product quality
- Reduces equipment failure
- Minimizes batch rejection
- Supports regulatory inspections
- Improves process reliability
- Reduces maintenance costs
- Enhances patient safety
- Provides documented evidence of equipment suitability
Because of these advantages, IQ OQ PQ Qualification has become an essential requirement in every pharmaceutical manufacturing facility.
Qualification vs Validation
Many pharmaceutical professionals confuse qualification with validation. Although both are related, they are different activities.
| Qualification | Validation |
|---|---|
| Focuses on equipment and systems | Focuses on manufacturing processes |
| Confirms equipment suitability | Confirms process consistency |
| Includes IQ, OQ and PQ | Includes Process Validation, Cleaning Validation and Analytical Method Validation |
| Performed before validation | Performed after qualification |
| Demonstrates equipment capability | Demonstrates process capability |
A simple way to understand the relationship is:
Equipment is qualified first, and then the manufacturing process is validated.
Lifecycle of IQ OQ PQ Qualification
Equipment qualification follows a systematic lifecycle that begins before installation and continues throughout the equipment’s operational life.
The qualification lifecycle generally includes:
- User Requirement Specification (URS)
- Design Qualification (DQ)
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Performance Qualification (PQ)
- Routine Monitoring
- Preventive Maintenance
- Calibration
- Requalification (when required)
This lifecycle approach ensures continuous equipment reliability.
What Is Installation Qualification (IQ)?
Installation Qualification (IQ) is the first stage of IQ OQ PQ Qualification.
IQ provides documented evidence that equipment has been delivered, installed, and configured according to the manufacturer’s recommendations, engineering drawings, and approved specifications.
Installation Qualification does not evaluate equipment performance. Instead, it verifies that the equipment has been installed correctly before operational testing begins.
Objectives of Installation Qualification
The primary objectives of IQ are:
- Verify correct installation
- Confirm equipment identification
- Verify utility connections
- Ensure calibration of measuring instruments
- Verify availability of operating manuals
- Confirm construction materials
- Verify safety features
- Confirm compliance with design specifications
Successful IQ establishes a strong foundation for OQ and PQ.
Installation Qualification Activities
During IQ, several activities are performed to verify proper installation.
Equipment Verification
The equipment is checked against approved purchase specifications.
Items verified include:
- Equipment model
- Serial number
- Manufacturer details
- Capacity
- Material of construction
- Surface finish
Utility Verification
All utility connections are inspected.
Utilities include:
- Electricity
- Steam
- Compressed Air
- Nitrogen
- Purified Water
- Water for Injection
- Chilled Water
- Vacuum
Each utility connection must meet the approved engineering specifications.
Instrument Calibration
Critical instruments must be calibrated before qualification.
Examples include:
- Temperature indicators
- Pressure gauges
- Flow meters
- Load cells
- pH sensors
- Conductivity meters
Calibration certificates are reviewed during IQ.
Documentation Review
IQ also includes verification of:
- Equipment manuals
- Engineering drawings
- Piping and Instrumentation Diagram (P&ID)
- Material certificates
- Factory Acceptance Test (FAT)
- Site Acceptance Test (SAT)
Proper documentation is essential for regulatory compliance.
Safety Verification
Safety devices are inspected, including:
- Emergency stop buttons
- Pressure relief valves
- Safety interlocks
- Earthing
- Guards
- Alarm systems
All safety features must function correctly before equipment operation.
IQ Documentation
Typical IQ documentation includes:
- Installation Qualification Protocol
- Equipment Specification Sheet
- Utility Verification Checklist
- Instrument Calibration Certificates
- Equipment Identification Record
- Material Certificates
- P&ID
- Electrical Drawings
- IQ Test Results
- IQ Report
Once all IQ activities are successfully completed and approved by Quality Assurance, the equipment is ready for Operational Qualification.
What Is Operational Qualification (OQ)?
Operational Qualification (OQ) is the second stage of IQ OQ PQ Qualification.
OQ demonstrates that the equipment operates according to predefined operating ranges under controlled conditions.
Unlike IQ, which verifies installation, OQ verifies functionality.
The objective is to ensure that every control, alarm, sensor, and operational parameter functions as intended before routine manufacturing begins.
Objectives of Operational Qualification
Operational Qualification aims to:
- Verify equipment functionality
- Test operating ranges
- Confirm alarm systems
- Verify control systems
- Check software functionality
- Evaluate safety interlocks
- Establish operating limits
- Develop standard operating procedures
Operational Qualification (OQ) in Detail
Operational Qualification (OQ) is the second stage of IQ OQ PQ Qualification and is performed after the successful completion of Installation Qualification (IQ). The primary objective of OQ is to verify and document that the equipment operates correctly within its predefined operating limits under controlled conditions.
Unlike IQ, which confirms proper installation, Operational Qualification focuses on testing the functionality of the equipment. During this stage, every operational parameter, control system, alarm, interlock, and software function is challenged to ensure that the equipment performs according to the manufacturer’s specifications and user requirements.
OQ establishes the normal operating ranges that will be used during routine production. It also verifies that the equipment can safely operate at both minimum and maximum operating limits without affecting product quality or equipment performance.
Objectives of Operational Qualification
The major objectives of Operational Qualification include:
- Verify that equipment operates according to design specifications.
- Confirm all operational controls function correctly.
- Test operating ranges and process parameters.
- Verify alarms and safety interlocks.
- Evaluate software functionality (where applicable).
- Confirm instrument accuracy after calibration.
- Establish standard operating conditions.
- Ensure equipment is ready for Performance Qualification.
Successful completion of OQ provides confidence that the equipment is functioning properly before actual product manufacturing begins.
Activities Performed During OQ
Several qualification tests are conducted during Operational Qualification.
Equipment Functional Testing
Every function of the equipment is tested individually.
Examples include:
- Motor operation
- Pump performance
- Agitator speed
- Heating system
- Cooling system
- Valve operation
- Pressure control
- Flow control
The equipment should respond correctly under all operating conditions.
Alarm Verification
Alarm systems are tested to verify that they activate whenever critical process parameters exceed predefined limits.
Examples include:
- High temperature alarm
- Low temperature alarm
- High pressure alarm
- Low pressure alarm
- Motor overload alarm
- Emergency stop alarm
All alarms must be clearly visible and audible.
Safety Interlock Testing
Safety interlocks protect both operators and equipment.
Common interlocks include:
- Door interlock
- Pressure interlock
- Low water level interlock
- Emergency shutdown system
- Overload protection
Each interlock is challenged individually to verify proper operation.
Instrument Verification
All measuring instruments are checked during OQ.
Examples:
- Temperature indicators
- Pressure transmitters
- Flow meters
- Conductivity meters
- pH sensors
- Level sensors
Readings should remain within approved tolerance limits.
Software Verification
Modern pharmaceutical equipment uses PLC and SCADA systems.
Software verification includes:
- Password access
- Recipe management
- Alarm history
- Audit trail
- Data recording
- Report generation
Software should comply with 21 CFR Part 11 requirements wherever applicable.
Documentation Required for OQ
Operational Qualification documentation generally includes:
- OQ Protocol
- Equipment Functional Test Sheets
- Alarm Verification Records
- Instrument Calibration Reports
- Control System Verification
- Deviation Reports
- Test Results
- OQ Summary Report
- Quality Assurance Approval
Comprehensive documentation ensures traceability and regulatory compliance.
What Is Performance Qualification (PQ)?
Performance Qualification (PQ) is the third and final stage of IQ OQ PQ Qualification.
Performance Qualification provides documented evidence that the qualified equipment consistently performs according to its intended purpose during routine manufacturing conditions.
Unlike IQ and OQ, PQ is conducted using actual production conditions, approved operating procedures, trained personnel, and production materials.
The purpose of PQ is to demonstrate that the equipment consistently produces acceptable results over multiple production runs.
Objectives of Performance Qualification
The objectives of PQ include:
- Verify consistent equipment performance
- Confirm process reproducibility
- Demonstrate product quality
- Verify routine operating procedures
- Confirm operator competency
- Ensure long-term equipment reliability
Successful PQ demonstrates that the equipment is ready for commercial manufacturing.
Activities Performed During PQ
Performance Qualification includes several production-based evaluations.
Manufacturing Trial Batches
Commercial-scale batches are manufactured using qualified equipment.
Parameters evaluated include:
- Yield
- Process consistency
- Product quality
- Process time
- Equipment stability
Product Testing
Samples collected during PQ are tested for:
- Assay
- Dissolution
- Content Uniformity
- Moisture Content
- Hardness
- Thickness
- Impurities
- Appearance
All results must comply with approved specifications.
Process Monitoring
Critical Process Parameters (CPPs) are continuously monitored.
Examples include:
- Temperature
- Mixing speed
- Pressure
- Drying time
- Compression force
- Flow rate
Process stability is evaluated throughout the qualification run.
Repeatability Assessment
The equipment should produce consistent results across multiple production batches.
Most pharmaceutical companies evaluate at least three consecutive successful batches during PQ.
Documentation Required for PQ
Performance Qualification documentation includes:
- PQ Protocol
- Batch Manufacturing Record (BMR)
- Process Data
- Product Test Results
- Statistical Analysis
- Deviation Investigation
- PQ Report
- QA Approval
Proper documentation demonstrates that equipment consistently performs under actual manufacturing conditions.
Acceptance Criteria for IQ OQ PQ Qualification
Acceptance criteria should be established before qualification activities begin.
Examples include:
IQ Acceptance Criteria
- Equipment installed according to approved drawings
- Utilities connected correctly
- Calibration completed
- Documentation available
OQ Acceptance Criteria
- Equipment operates within defined limits
- All alarms function correctly
- Safety interlocks operate properly
- Software performs as intended
PQ Acceptance Criteria
- Product meets specifications
- Process remains stable
- Consecutive batches are successful
- No critical deviations observed
Meeting acceptance criteria confirms successful qualification.
Qualification Protocol
Every IQ OQ PQ Qualification activity begins with an approved qualification protocol.
A qualification protocol generally contains:
- Objective
- Scope
- Responsibilities
- Equipment Details
- Test Procedures
- Sampling Plan
- Acceptance Criteria
- Deviation Handling
- Documentation Requirements
The protocol must be approved by Production, Engineering, Validation, and Quality Assurance before execution.
Qualification Report
After completing qualification activities, a detailed report is prepared.
The qualification report includes:
- Summary of tests performed
- Results obtained
- Deviations encountered
- Corrective actions
- Statistical evaluation (if applicable)
- Final conclusion
- QA approval
The report provides documented evidence that the qualification has been successfully completed.
Regulatory Requirements for IQ OQ PQ Qualification
Regulatory agencies require pharmaceutical manufacturers to establish documented qualification programs.
Major regulatory references include:
US FDA
The FDA expects manufacturers to qualify equipment before process validation and maintain complete qualification documentation.
EU GMP Annex 15
Annex 15 provides detailed guidance on qualification and validation activities throughout the equipment lifecycle.
WHO GMP
WHO requires documented evidence demonstrating equipment suitability before production.
PIC/S
PIC/S emphasizes lifecycle qualification, risk management, and documented evidence.
ICH Q9
ICH Q9 recommends applying Quality Risk Management principles while planning qualification activities.
Common Mistakes During IQ OQ PQ Qualification
Common mistakes include:
- Incomplete URS
- Missing calibration certificates
- Inadequate documentation
- Poor protocol design
- Incorrect acceptance criteria
- Untrained operators
- Failure to investigate deviations
- Skipping requalification after equipment modification
Avoiding these mistakes improves compliance and equipment reliability.
Best Practices for IQ OQ PQ Qualification
To achieve successful qualification:
- Develop a detailed User Requirement Specification (URS).
- Perform Design Qualification (DQ) before installation.
- Follow approved qualification protocols.
- Calibrate all measuring instruments.
- Train personnel regularly.
- Maintain proper documentation.
- Perform preventive maintenance.
- Apply Quality Risk Management principles.
- Review qualification records periodically.
- Conduct requalification after significant changes.
Following these best practices ensures that IQ OQ PQ Qualification remains effective throughout the equipment lifecycle.
Real Pharmaceutical Example of IQ OQ PQ Qualification
To understand IQ OQ PQ Qualification more clearly, let’s consider a practical example of a tablet manufacturing plant installing a new Fluid Bed Dryer (FBD).
Step 1: User Requirement Specification (URS)
Before purchasing the equipment, the user prepares a User Requirement Specification (URS) that includes:
- Batch capacity: 300 kg
- Stainless steel SS316L contact parts
- PLC-based control system
- Automatic temperature control
- Data logging facility
- GMP-compliant design
- HEPA-filtered air supply
The URS serves as the foundation for qualification activities.
Step 2: Installation Qualification (IQ)
After the FBD is delivered, the engineering and validation teams perform Installation Qualification.
The following checks are completed:
- Equipment model and serial number verification
- Material of construction verification
- Utility connections (electricity, compressed air)
- P&ID verification
- Calibration certificate review
- Instrument identification
- Safety device inspection
- Equipment labeling
- Installation drawings verification
After successful completion, the IQ report is approved by Quality Assurance.
Step 3: Operational Qualification (OQ)
Next, the FBD is tested without product.
The following tests are performed:
- Temperature control test
- Airflow verification
- Blower speed test
- Alarm testing
- Emergency stop verification
- PLC software verification
- HEPA filter pressure drop
- Timer accuracy
- Safety interlock verification
All operating parameters are verified against predefined acceptance criteria.
Step 4: Performance Qualification (PQ)
Finally, three consecutive commercial batches are manufactured using approved operating procedures.
During PQ the following parameters are monitored:
- Drying temperature
- Moisture content
- Drying time
- Product yield
- Uniformity
- Process reproducibility
All three batches meet specifications.
The equipment is declared qualified for routine production.
This example demonstrates how IQ OQ PQ Qualification ensures that pharmaceutical equipment consistently performs according to GMP requirements.
When Is Requalification Required?
Equipment qualification is not a one-time activity.
Requalification is required whenever significant changes could affect equipment performance.
Common situations include:
Equipment Modification
Examples include:
- Motor replacement
- PLC software upgrade
- Control panel modification
- Heating system replacement
Change in Installation Location
Moving equipment to another manufacturing area requires requalification.
Major Maintenance
After replacement of critical components, qualification should be repeated.
Examples:
- Agitator shaft
- Heat exchanger
- Compressor
- Vacuum pump
Utility Changes
Changes in utilities such as:
- Compressed air
- Steam pressure
- Electrical supply
- Water system
may require partial or complete requalification.
Regulatory Requirement
During inspections, regulatory authorities may recommend requalification based on observations.
Periodic Requalification
Many pharmaceutical companies establish periodic qualification intervals as part of their validation master plan.
Difference Between DQ, IQ, OQ and PQ
Understanding the relationship between these qualification stages is essential.
| Qualification Stage | Purpose | Performed When |
|---|---|---|
| Design Qualification (DQ) | Confirms that the proposed equipment design meets the User Requirement Specification (URS) and GMP requirements. | Before equipment purchase and installation |
| Installation Qualification (IQ) | Verifies that the equipment is installed correctly according to approved drawings and manufacturer recommendations. | After installation |
| Operational Qualification (OQ) | Demonstrates that the equipment operates within predefined operating limits under controlled conditions. | After IQ |
| Performance Qualification (PQ) | Confirms that the equipment consistently performs under routine manufacturing conditions using actual product or process. | After OQ |
The qualification sequence should always follow:
DQ → IQ → OQ → PQ
Skipping any stage may compromise equipment reliability and regulatory compliance.
Common Interview Questions on IQ OQ PQ Qualification
These questions are frequently asked during interviews for QA, Validation, Production, and Engineering positions.
1. What is IQ OQ PQ Qualification?
Answer:
IQ OQ PQ Qualification is a documented process used to verify that pharmaceutical equipment is properly installed, operates according to specifications, and consistently performs under actual production conditions.
2. Why is IQ performed before OQ?
Because equipment must first be correctly installed before its operational performance can be evaluated.
3. Can OQ be performed before IQ?
No.
Operational Qualification cannot begin until Installation Qualification has been successfully completed and approved.
4. How many batches are required during PQ?
Generally, three consecutive successful batches are evaluated, although the exact number depends on risk assessment and company procedures.
5. Which department approves IQ OQ PQ Qualification?
Typically:
- Engineering
- Validation
- Production
- Quality Assurance (Final Approval)
6. What documents are reviewed during IQ?
Examples include:
- URS
- Equipment Manual
- P&ID
- Calibration Certificates
- Material Certificates
- FAT Report
- SAT Report
7. What is the purpose of OQ?
To verify that equipment operates correctly within its specified operating range.
8. What is the purpose of PQ?
To demonstrate consistent equipment performance during routine manufacturing.
Conclusion
IQ OQ PQ Qualification is a fundamental requirement in pharmaceutical manufacturing that ensures equipment is installed correctly, operates according to predefined specifications, and consistently performs under actual production conditions. By following the systematic sequence of Design Qualification (DQ), Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ), pharmaceutical companies establish a strong foundation for reliable manufacturing and regulatory compliance.
A well-executed IQ OQ PQ Qualification program minimizes equipment failures, improves process consistency, supports successful audits, and enhances product quality. Proper documentation, risk assessment, preventive maintenance, and periodic requalification further strengthen equipment reliability throughout its lifecycle.
As pharmaceutical manufacturing continues to adopt digital technologies and automation, IQ OQ PQ Qualification will remain an essential component of validation programs, ensuring that equipment consistently delivers safe, effective, and high-quality medicines.
Frequently Asked Questions (FAQ)
1. What does IQ OQ PQ Qualification mean?
IQ OQ PQ Qualification is a documented process used to verify that pharmaceutical equipment is correctly installed, operates according to specifications, and consistently performs during routine production.
2. What is the sequence of IQ OQ PQ Qualification?
The correct sequence is:
Design Qualification (DQ) → Installation Qualification (IQ) → Operational Qualification (OQ) → Performance Qualification (PQ).
3. Why is IQ OQ PQ Qualification important?
It ensures equipment reliability, GMP compliance, product quality, regulatory acceptance, and patient safety.
4. Which pharmaceutical equipment requires qualification?
Examples include:
- Reactors
- Fluid Bed Dryers
- Tablet Compression Machines
- Coating Machines
- Granulators
- Purified Water Systems
- HVAC Systems
- Autoclaves
- Filling Machines
5. What documents are required for IQ OQ PQ Qualification?
Typical documents include:
- URS
- DQ Report
- IQ Protocol
- OQ Protocol
- PQ Protocol
- Calibration Certificates
- Equipment Manuals
- P&ID
- Qualification Reports
- SOPs
Key Takeaways
- IQ verifies correct equipment installation.
- OQ confirms equipment operates within specified limits.
- PQ demonstrates consistent performance under routine manufacturing conditions.
- Qualification should follow the sequence: DQ → IQ → OQ → PQ.
- Proper documentation, validation, and requalification are essential for GMP compliance and regulatory success.
